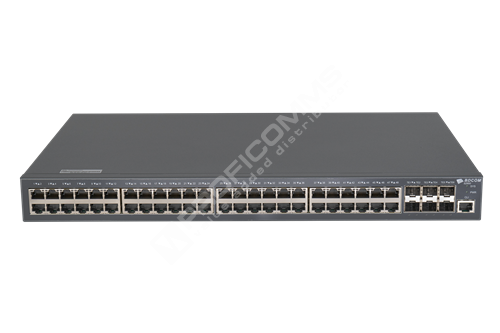

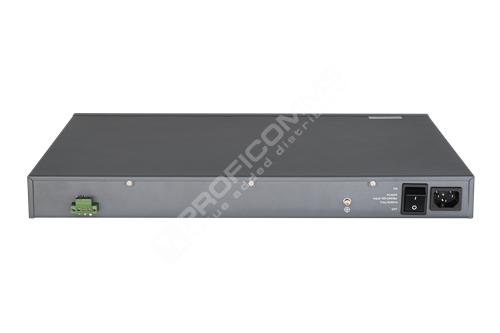

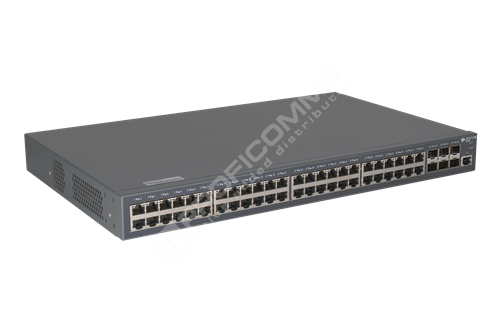

BDCOM S2900-48T6X: L3-lite Managed Gigabit Switch s 10G uplinkem, 48x RJ-45, 6x SFP+, zdroj 220V AC

Main Features:

VLAN

• 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice VLAN

Spanning Tree

• 802.1D (STP), 802.1W
  (RSTP) and 802.1S (MSTP)
• BPDU guard, root guard and loopback guard

Multicast

• IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter

IP

• Static route
• IPv4/v6 dual stack

IPV6

• ICMPv6, DHCPv6, ACLv6 and Telnet
• IPv6 neighbor discovery, Path MTU Discovery
• MLD V1, MLD snooping
• IPv6 Static Routing, RIPng, OSPFv3
• Manual tunnel, ISATAP tunnel, 6 to 4 tunnel

Certification

• CE, FCC, ROHS

QoS

• CAR, HQoS, MAC/IP/TCP/ UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping

Security

• Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky
• DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,
• IEEE 802.1x, Radius and BDTacacs+
• L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control
• MD5, SHA-256, RSA-1024, AES256, etc.

DHCP

• DHCP server/relay/client
• DHCP snooping/option82

Reliability

• Static/LACP link aggregation, Interface backup
• EAPS and ERPS
• ISSU uninterrupted system upgrade
• BVSS, ups to 16-units per stack
• VRRP
• UDLD

Management

• Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON
• TFTP, FTP, SFTP
• NTP
• ZTP
• SPAN, RSPAN
• Dying gasp*

Environment

• Operating temperature/ humidity: 0℃ -50℃ ,10%-90% non-condensing
• Storage temperature/ humidity: -20℃-70℃, 5%-95% non- condensing

Accessories

• Power cord, rackmount kits, console cable
