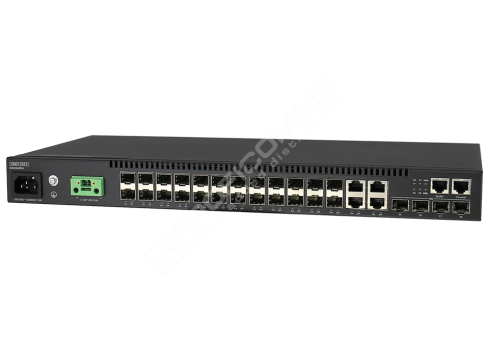

Edge-Core ECS4120-28Fv2: Gigabit Ethernet L2 switch s 10GE uplinkem 28 port, zdroj AC+DC

Optický L2 switch s managementem, 20x GE SFP, 4CG + 4x 10G SFP+, AC/DC napájení, statický routing

Specifikace:

• 20x 100/1000 SFP Ports
• 4x 10/100/1000 Combo Ports
• 4x SFP+ 10 Gigabit Uplink Ports
• 1x GE Out of Band Management Port
• 1x RJ-45 Console Port
• Rozměry: 220 x 440 x 44 mm
• Operační teplota: 0°C - 50°C
• Operační vlhkost: 10% - 90%

Výkon:

• Switching Capacity: 128Gpbs
• Forwarding Rate: 95 Mpps
• Flash Memory: 256MB
• DRAM: 512MB
• MAC Address Table Size: 16K
• Jumbo Frames: 9KB

Vlastnosti

L2 Features

• Tri-speed (10/100/1000BASE-T) copper interfaces
• Auto-negotiation for port speed and duplex mode
• Auto MDI/MDI-X
• 100 M/1 G fiber interface
• SFP ports support:
  • IEEE802.3 100BASE-FX
  • IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers
• Transceiver-threshold current/rx-power/temperature/tx-power/ voltage/high-low alarm and warning
• Digital Diagnostic Monitoring (DDM) on SFP port only
• Flow Control:
  • IEEE 802.3x for full duplex mode
  • Back-Pressure for half duplex mode
• Jumbo frames: 9KB
• Broadcast/Multicast/ Unknown Unicast Storm Control
• Spanning Tree Protocol:
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances
  • BPDU Guard
  • BPDU filtering
  • Root Guard
  • BPDU transparent
  • Loopback detection
• Non-Spanning Tree Loopback detection
• ITU-T G.8032 Ethernet Ring Protection*
  • Sub 50 msec convergence*
  • Revertive operation mode*
  • Multiple-ring network*
• VLANs:
  • Supports 4K VLAN
  • Port-based VLAN
  • IEEE 802.1Q VLAN
  • GVRP
  • VLAN Trunking
  • IEEE 802.1v Protocol-based VLAN
  • IP Subnet-based VLAN
  • MAC-based VLAN
  • Traffic Segmentation
• L2 Virtual Private Networks (Q-in-Q):
  • Selective QinQ
  • VLAN Translation
  • L2 Protocol tunneling (xSTP, CDP, VTP and PVST+, LLDP)
  • CDP/PVST+ Filtering
• Link Aggregation:
  • Static Trunk
  • IEEE 802.3ad Link Aggregation Control Protocol
  • Trunk groups: 26, up to 8 GE/ 4 10G ports per group
  • Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP
• IGMP Snooping:
  • IGMP v1/v2/v3 snooping
  • IGMP Proxy reporting
  • IGMP Filtering
  • IGMP Throttling
  • IGMP Immediate Leave
  • IGMP Querier
  • IGMP mrouter-forward mode
  • IGMP router-alert-option-check
  • IGMP router-port-expire-time
  • IGMP tcn-flood
  • IGMP tcn-query-solicit
  • IGMP unregistered-data-flood
• MVR (Multicast VLAN Registration)
  • Supports 5 multicast VLANs
• Port mirroring (many source ports to one destination port. One source port to one destination port only)
• Remote port mirror (RSPAN)

QoS Features

• Priority Queues: 8 hardware queues per port
• Traffic classification:
  • IEEE 802.1p CoS
  • IP Precedence
  • DSCP
  • MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID)
  • IP Standard access control list (Source IP)
  • IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
• Traffic Scheduling
  • Strict Priority
  • Weighted Round Robin
  • Strict + WRR
• Single/ Two rate Three color marker
• Ingress policy map
• Egress policy map
• Rate Limiting (Ingress and Egress, per port base)
  • GE: Resolution 64Kbps ~ 1,000Mbps
• Auto Traffic Control

Security

• User Security for Enterprise:
  • IEEE 802.1X port based and MAC based authentication
  • Dynamic VLAN Assignment
  • Auto QoS
  • MAC authentication
  • Web authentication
  • Voice VLAN
  • Guest VLAN
• User Security for ISP/MSO:
  • L2/L3/L4 Access Control List
  • MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID)
  • IP standard access control list (Source IP)
  • IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
  • DHCP Snooping
  • DHCP Option 82
  • DHCP Option 82 Relay
  • IP Source Guard
• Network Security:
  • IPv6 ACL
  • Port security
  • PPPoE IA
  • Dynamic ARP Inspection
  • CPU guard
  • CPU/Memory threshold and alarm
  • Denial of Service protection
    • echo-chargen
    • smurf
    • tcp-flooding
    • tcp-null-scan
    • tcp-syn-fin-scan
    • tcp-xmas-scan
    • udp-flooding
    • win-nuke
• Management Security:
  • Login Security
  • RADIUS authentication
  • RADIUS accounting
  • TACACS + authentication
  • TACACS + accounting
  • TACACS + authorization
  • Management Interface Access Filtering (SNMP, Web, Telnet)
  • SSH (v1.5/v2.0) for security Telnet
  • SSL for HTTPS
  • SNMPv3

Green Ethernet

• IEEE 802.3az Energy-Efficient Ethernet (EEE)

IPv6 Features

• IPv4/IPv6 dual protocol stack
• IPv6 Address Types Stack: Unicast
• IPv6 Neighbor Discovery
  • Duplicate address
  • Address resolution
  • Unreachable neighbor detection
• Stateless auto-configuration
• Manual configuration
• Remote IPv6 ping
• IPv6 Telnet support
• HTTP over IPv6
• SNMP over IPv6
• IPv6 Syslog support
• IPv6 TFTP support
• IPv6 MLD filter: MLD max-groups(throttling)
• IPv6 ND snooping
• MLD Snooping v1/v2
• IPv6 source guard
• DHCPv6 snooping
• MVR6

Management

• Switch Management:
  • CLI via console port or Telnet
  • WEB management
  • SNMP v1, v2c, v3
• IP clustering (32 members)
• Firmware & Configuration:
  • Firmware upgrade via TFTP/HTTP/FTP server
  • Dual images
  • Multiple configuration files
  • Configuration file upload/download via TFTP/HTTP/FTP server
  • Firmware auto upgrade
• RMON (groups 1, 2, 3 and 9)
• BOOTP, DHCP client for IP address assignment
• DHCP dynamic provision option 66,67
• SNTP/NTP
• DNS client
• Event/Error Log
• Syslog
• SMTP
• Supports LLDP (802.1ab)
• sFlow v4, v5
• Cable diagnostics
• Traceroute
• Traceroute6
• (Optional) ECView Pro, a powerful network management software that maximizes the managed capabilities of Edgecore devices with:
  • Topology management
  • Performance management
  • Configuration management
  • Event management
  • SNMP management

Routing

• IPv4 Static Route
• IPv6 Static Route
• RIP v1/v2
• Traceroute
• Traceroute6

OAM

• IEEE 802.3ah Link
• IEEE 802.1ag Connectivity Fault Management:
  • Connectivity check
  • Loopback
  • Linktrace
• ITU-T Y.1731 Performance and Throughput Management:
  • Frame Delay
  • Frame Delay variation

Safety

• UL (CSA 22.2. NO 60950-1 & UL60950-1)
• CB (IEC60950-1)

Electromagnetic Compatibility

• CE Mark
• FCC Class A
• CISPR Class A
• BSMI

Environmental Specifications

• Temperature:
  • 0ºC to 50ºC (Standard Operation)
  • -40℃ to 70℃ (Non-Operating)
• Humidity:
  • 10% to 90% (Non-condensing)

Power Supply

• Power input:
  • 100 to 240 VAC, 50/60 Hz
  • AC/DC: 90VAC~300VAC, 50/60 Hz
• Dying gasp
