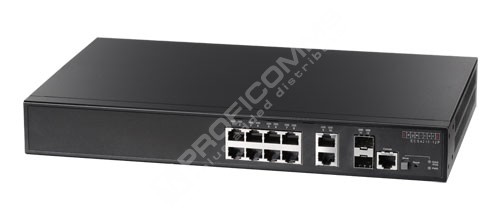

Edge-Core ECS4210-12P-ref: Gigabit Ethernet L2 PoE switch 12 port, zdroj 230V AC, použitý

L2 managed, 12 port, 8x 10/100/1000M RJ45 s PoE/PoE+ (30W na port, celkově max. 150W), 2x 10/100/1000M RJ45, 2x GE SFP slot

L2 Gigabit Ethernet switch ECS4210-12P firmy Edge-Core je osazen 8x RJ-45 10/100/1000Base-T metalickými porty s podporou PoE/PoE+,  dále 2x 10/100/1000Base-T (RJ-45) pro up-link a 2x SFP porty pro optický up-link. Výkonný a cenově dostupný switch ECS4210-12P je určený především pro podnikové sítě.

Switch ECS4210-12P nabízí podporu VLAN, Q-in-Q, multicast videa (IGMP Snooping), Spanning Tree protokoly (STP/RSTP/MSTP), agregaci linek (802.1ad LACP), řízení kvality služeb (QoS, ACL, rate-limiting) a sadu bezpečnostních funkcí (IEEE 802.1x, RADIUS authentication, IP Source Guard). Správa switche je z webového prohlížeče, pomocí příkazů Telnet či SNMP (v1, v2c, v3) nebo přes sériovou konzoli (RS-232). Podporovaný je také IPv6 management.

Zařízení podporuje napájení koncových zařízení (WiFi AP, IP telefony, IP kamery apod.) přes UTP kabely pomocí Power over Ethernet Plus dle standardů IEEE 802.3af a IEEE 802.3at (až 30W/port). Celkový PoE výkon switche je max. 150W.

Specifikace:

• 8x RJ-45 10/100/1000Base-T ports with PoE/PoE+
• 2x RJ-45 10/100/1000Base-T ports
• 2x GE SFP ports
• 1x RJ-45 Console Port
• Rozměry: šířka x hloubka x výška: 330mm x 203mm x 44mm
• Operační teplota: 0°C to 50°C
• Operační vlhkost: 10% to 90%

Výkon:

• Switching Capacity: 24Gbps
• Forwarding Rate: 17,9Mpps
• Flash Memory 32M
• DRAM: 128M
• MAC Table: 16K
• Jumbo Frames: 13K

L2 Funkce:

• Tri-speed (10/100/1000Base-T) copper interfaces
• Auto-negotiation for port speed and duplex mode
• Auto MDI/MDI-X
• SFP port support changeable 1000Base-SX/LX/LHX/ZX/TX transceiver
• Digital Diagnostic Monitoring (DDM)
• Flow Control
  • IEEE 802.3x for full duplex mode
  • Back-Pressure for half duplex mode
• Storm Control
  • Broadcast
  • Multicast
  • Unknown Unicast
• Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • BPDU Guard
  • BPDU filtering
  • Root Guard
  • BPDU transparent
  • Loopback detection
• VLANs
  • Supports 4K VLAN
  • Port-based VLAN
  • IEEE 802.1Q VLAN
  • GVRP (256 VLANs)
  • IEEE 802.1v Protocol-based VLAN
  • Subnet based VLAN
  • MAC-based VLAN
  • Traffic Segmentation
  • Support Voice VLAN
  • VLAN Trunking
• L2 Virtual Private VLAN
  • QinQ
• Link Aggregation
  • Static Trunk
  • IEEE 802.3ad Link Aggregation Control Protocol
  • Trunk groups: 8, up to 8 ports per group
  • Load balance based on MAC SA/DA, Ethertype, SIP, DIP, Source (TCP/UDP) port, Destination (TCP/UDP) port
• IGMP Snooping
  • IGMP v1/v2/v3 snooping
  • IGMP Proxy reporting
  • IGMP Filtering
  • IGMP Throttling
  • IGMP Immediate Leave
  • IGMP Querier
• MVR (Multicast VLAN Registration)
  • Support 5 Multicast VLAN
• Port Mirroring
• VLAN Mirroring
• MAC Based Mirroring
• Remote Port Mirroring (RSPAN)
• Supports jumbo frames up to 13KB

Funkce PoE

• Support on all Gigabit ports based on IEEE 802.3af
• PoE+ based on IEEE 802.3at
• Auto disable after exceeding power budget
• Dynamic Power Allocation
• PoE Power Budget: 150W

Funkce IPv6:

• IPv4/IPv6 dual protocol stack
• IPv4/IPv6 dual protocol stack
• IPv6 Address Types Stack: Unicast
• IPv6 Neighbor Discovery
• HTTP over IPv6
• SNMP over IPv6
• SSH over IPv6
• IPv6 Telnet support
• IPv6 DNS Resolver
• IPv6 Syslog support
• IPv6 SNTP support
• IPv6 TFTP support (CLI not support)
• Remote IPv6 ping
• IPv6 ACL

Funkce QoS:

• Priority Queues: 8 hardware queues per port
• Traffic Classification COS
  • IEEE 802.1p based COS
  • IP Precedence based COS
  • IP DSCP based COS
  • MAC access control lists (source/destination MAC, Ether type, priority ID/VLAN ID)
  • IP standard access control lists (source IP)
  • IP extended access control lists (source/destination IP, protocol, TCP/UDP port number)
• Traffic Scheduling
  • Strict Priority
  • Weighted Round Robin
  • Strict + WRR traffic scheduling
• Two Rate Three Color Marker
• Ingress traffic policing
• Egress traffic shaping
• Marking/remarking
• Rate Limiting (ingress and egress, per port base)
  • GE: Resolution 64 Kbps ~ 1000 Mbps
• DiffServ

Bezpečnostní funkce:

• Port security
• IEEE 802.1X port-based and MAC-based authentication
• MAC authentication, Web authentication
• Voice VLAN, Guest VLAN, EAPOL frames pass through
• L2/L3/L4 Access Control Lists
• IPv6 ACL
• DHCP Snooping
• DHCP Option 82
• IP Source Guard
• Dynamic ARP Inspection
• RADIUS Authentication
• TACACS+ Authentication
• TACACS+ Authorization and Accounting
• HTTPS and SSL
• SSH (v1.5/v2.0)
• User name password authentication
  • Local authentication
  • Remote authentication via RADIUS/TACACS+
• Management Interface Access Filtering
  • SNMP
  • Web Telnet/SSH
• MAC filter
• PPPoE intermediate agent*

Management:

• Switch Management
  • CLI via console port or Telnet
  • WEB management
  • SNMP v1, v2c, v3
• Firmware and Configuration
  • Firmware upgrade via TFTP server
  • Multiple configuration files
  • Configuration file upload/download via TFTP server
• RMON (groups 1, 2, 3 and 9)
• BOOTP, DHCP client for IP address assignment
• DHCP dynamic provision option 66,67
• SNTP
• Event/Error Log/Syslog, SMTP
• Supports LLDP (802.1ab)
• IP clustering
• (Optional) ECview Pro, powerful network management software that maximizes the managed capabilities of Edge-Core devices with
  • Topology Management
  • Performance Management
  • Configuration Management
  • Event Management
  • SNMP Managemen

Obsah balení:

• Napájecí kabel
• Komunikační kabel
• Příslušenství pro montáž do racku
