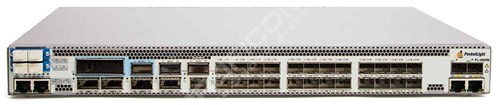

PacketLight PL-4000M: Modulární 400G muxpondér s možností zapnutí kryptování.

Modulární 400G muxpondér 10/25/100GbE, 16/32G FC, OTU2/2e/4. 400G uplink CFP2-DCO nebo QSFPDD-DCO. S možností zapnutí kryptování.

Specifikace

•     Flexible high capacity architecture based on 400G pluggable digital coherent optical modules
•     Supported clients: 10/25/100Gb Ethernet,16/32G Fibre Channel, OTU2/OTU2e, OTU4
•     Flexible mix of client services mapped into a single 400G DWDM wavelength
•     Supported FEC modes on the line side:
  •         C-FEC
  •         O-FEC
•     Standard MSA pluggable modules:
  •         Uplink:400G CFP2-DCO or QSFPDD-DCO ZR/ZR+
  •         Clients:4 x QSFP28 for 100GbE or OTU4,24 x SFP+ / SFP28 for all others
•     Layer-1 GCM-AES-256 encryption
•     Elliptic Curve Diffie-Hellman key exchange
•     Comprehensive line and service performance monitoring
•     Integrated EDFAs, pre-amp and/or booster (optional)
•     Facility protection using an integrated optical switch (optional)
•     Remote management using in-band GCC orout-of-band OSC
•     Easy maintenance with field-replaceable parts:
  •         Dual hot pluggable power supply units (AC/DC)
  •         Fan unit

Aplikace

•     400G metro and long haul network applications ranging up to 1,200km
•     200G long hall applications ranging up to 2,500km
•     High capacity DCI for enterprise, campus and cloud computingnetworks
•     400G links to bolster existing OTN/DWDM infrastructure
•     Last mile access/aggregation CPE for 100GbE managed services
•     Secured and encrypted communication for 10/25/100GbE and16/32G FC services

Výhody

•     Cost-effective high capacity transport of 400G over single wavelength
•     Supports flexible mix of client interface protocols
•     Embedded Layer-1 GCM-AES-256 optical encryption
•     Integrated EDFAs and optical switch in 1U chassis
•     User-configurable 200G/400G operation mode
