ubiQuoss C604G: GPON ONT 4x 10/100/1000M

GPON ONT, 4x GE porty 10/100/1000 Base-T, 1x GPON port, bridge mode

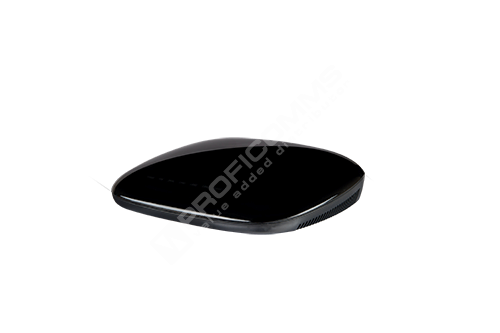

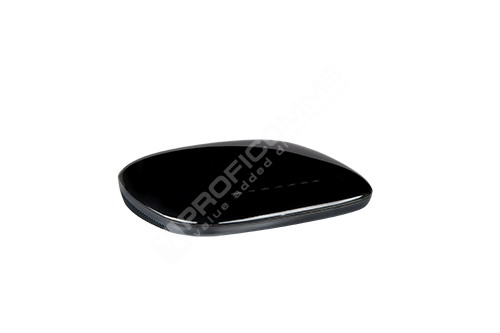

C604G je GPON ONT jednotka určená pro domácnosti (SFU - Single Family Unit) a malé kanceláře. Jednotka poskytuje vysoký výkon, personalizované služby s mnoha funkcemi včetně přenosu videa (IPTV), hlasu a vysokorychlostního internetu. Jednotka má moderní lesklý vzhled a splňuje požadavky na energeticky úsporný provoz.

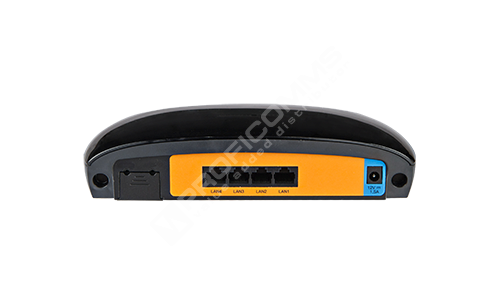

C604G podporuje 4 Gigabit Ethernet (UTP, RJ45) porty s optickým propojením na GPON OLT a RN (Remote Node) pro zajištění triple play služeb. C604G funguje standardně v bridge modu a zajišťuje funkce jako je Q-in-Q, VLAN translation, VLAN trunking, VLAN tagging/detagging, což poskytuje poskytovatelům služeb univerzální podmínky pro nastavaní sítě dle vlastních požadavků.

SYSTEM HW ARCHITECTURE

4 Port 10/100/1000 Base-T Ethernet data interfaces Ethernet port auto negotiation or manual con?guration MDI/MDIX automatic sensing AC Adapter input 100 ~ 240 volts , 50/60 Hz Power Input 12V, 1.5A (feed via external AC/DC adapter) 180mm(W) x 135mm(D) x 40mm(H) SFU-Type Dimension -10?~60? Operating Temperature Dying Gasp support

NETWORK FEATURES

Bridge Mode Support Up to 256 MAC address and 4 VLAN group VLAN stacking (Q-in-Q), VLAN translation, VLAN trunking VLAN tagging/detagging per Ethernet port IGMP v2/v3 snooping

PON FEATURES

ITU-T G.984 GPON compliant (984.1/.2/.3/.4) Compliant to FSAN G.984.2 specifications 1310nm Tx, 1490nm Rx 1244Mbps Tx / 2488Mbps Rx asymmetric data rate Burst mode upstream transmission 20km reach GR-468-CORE compliant SC/APC connector Multiple T-CONTs, Multiple Port-IDs NSR/SR DBA Upstream and Downstream FEC AES-128 decryption 512 Port-Ids 8 Transmission Container Maximum 2.488 Gbps Downlink/1.244 Gbps Uplink

QoS / Security FEATURES

IP ToS/DSCP to 802.1p mapping CoS based on VLAN-ID, 802.1p bit, ToS/DSCP Marking/remarking of 802.1p QoS Support with 4-traffic classed based on arrival port, IEEE802.1p, Ipv4 TOS Mac Address Limit for Mac Spoofing Attack Static Mac Address

OAM

Standards-compliant OMCI as defined in ITU-T G.984.4 and G.983.2 Management Information Base (MIB) manipulation over OMCI by Create, Delete, Set, Get and Get Next commands Provisioning for all services including Ethernet, IPTV, etc. Alarming and AVC report, performance monitoring Remote image download over OMCI, as well as activation and rebooting Holds two F/W banks for image integrity and rollback
