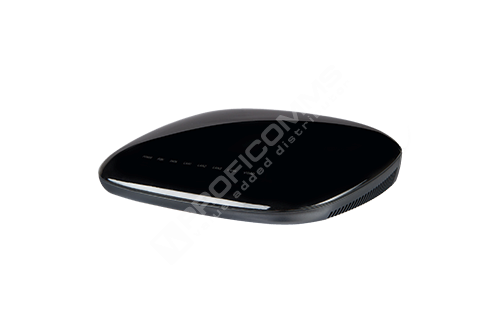

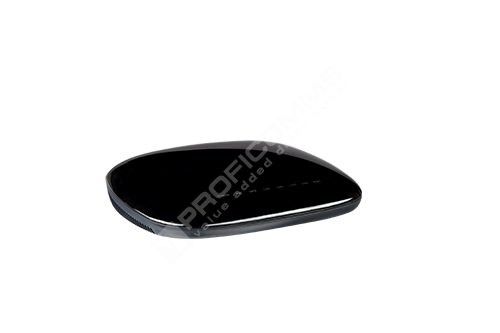

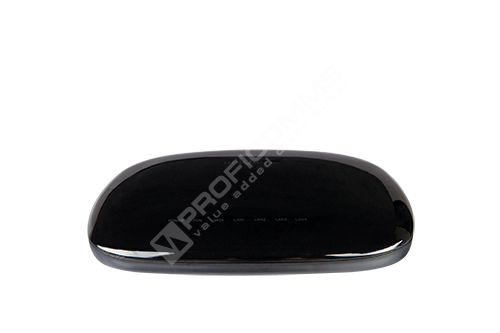

ubiQuoss C604GR: GPON ONT 4x 10/100/1000M 1x RF

GPON ONT, 4x GE porty 10/100/1000 Base-T, 1x RF, 1x GPON port, bridge mode

C604GR je GPON ONT jednotka s jedním RF video portem a 4 Gigabit Ethernet porty pro servisní funkce. Jednotka poskytuje vysoký výkon, personalizované služby s mnoha funkcemi včetně přenosu videa (IPTV), hlasu, vysokorychlostního internetu a CATV analogové služby.

C604GR funguje standardně v bridge modu a zajišťuje funkce jako je Q-in-Q, VLAN translation, VLAN trunking, VLAN tagging/detagging, což poskytuje poskytovatelům služeb univerzální podmínky pro nastavaní sítě dle vlastních požadavků. OAM funkce kompatibilní se standardy OMCI usnadňují pohodlnější a efektivnější provoz sítě.

SYSTEM HW ARCHITECTURE

4 Port 10/100/1000 Base-T Ethernet data interfaces Ethernet port auto negotiation or manual con?guration MDI/MDIX automatic sensing One coaxial interface (54Mhz–1GHz Frequency Range) AC Adapter input 100 ~ 240 volts, 50/60 Hz Power Input 12V, 1.5A (feed via external AC/DC adapter) 180mm(W) x 135mm(D) x 40mm(H) SFU-Type Dimension -10?~60?Operating Temperature Dying Gasp support

NETWORK FEATURES

Bridge Mode Support 256 MAC address and 16 VLAN group VLAN stacking (Q-in-Q), VLAN translation, VLAN trunking VLAN tagging/detagging per Ethernet port IGMP v2/v3 snooping

PON FEATURES

ITU-T G.984 GPON compliant (984.1/.2/.3/.4) Single fiber, integrated triplexer transceiver Compliant to FSAN G.984.2 specifications Data/Video FTTx ONT/ONU applications 1310nm Tx, 1490nm Rx, 1555nm video Rx 1244Mbps Tx / 2488Mbps Rx asymmetric data rate Received Optical Power Min: -28dBm ~ -8dBm Burst mode upstream transmission Extinction Ratio: Min 10dB Average Optical Output Power: Min 0.5dBm ~ 5dBm 870MHz video bandwidth 20km reach GR-468-CORE compliant SC/APC connector Multiple T-CONTs, Multiple Port-IDs NSR/SR DBA Upstream and Downstream FEC AES-128 decryption 512 Port-Ids 8 Transmission Container Maximum 2.488 Gbps Downlink/1.244 Gbps Uplink

QoS / Security FEATURES

Frequency Range: Min 54MHz – Max 870MHz Receiver Wavelength: Min 1540nm – Max 1560nm Received Average Optical Power: Min -8dBm – Max 2dBm RF Output Level : Min 18dBmV/ch RF Output Impedance : 75 Ohm

QoS / Security FEATURES

IP ToS/DSCP to 802.1p mapping CoS based on VLAN-ID, 802.1p bit, ToS/DSCP Marking/remarking of 802.1p QoS Support with 4-traffic classed based on arrival port, IEEE802.1p, Ipv4 TOS Mac Address Limit for Mac Spoofing Attack Static Mac Address

OAM

Standards-compliant OMCI as defined in ITU-T G.984.4 and G.983.2 Management Information Base (MIB) manipulation over OMCI by Create, Delete, Set, Get and Get Next commands Provisioning for all services including Ethernet, IPTV, etc. Alarming and AVC report, performance monitoring Remote image download over OMCI, as well as activation and rebooting Holds two F/W banks for image integrity and rollback
