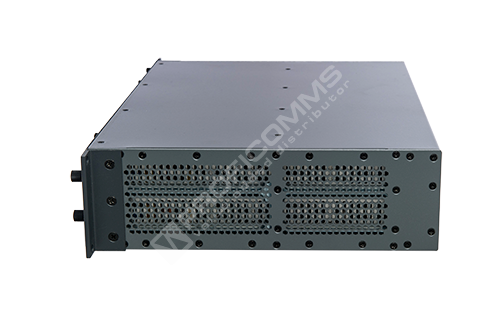

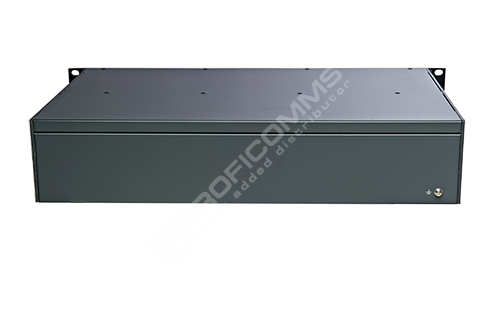

ubiQuoss U9016B: GPON OLT19" šasi 2U

OLT 19" šasi 2U, 1x managament a uplink karta(2x10G SFP+ a 4x1G SFP), 2x GPON slot pro GPON karty PIU-8G, 1x ventilátor, 2x AC napájecí zdroj

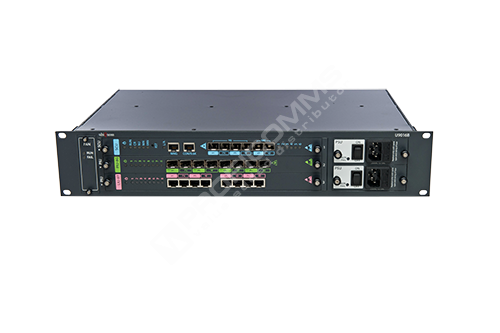

Centrální GPON jednotka U9016B je navržena pro univerzální umístění s DC nebo AC zdrojem. Kompaktní velikost 2U typu form factor umožňuje snadní čelní přístup. Jednotka obsahuje přepínací modul (SCU), napájecí modul (PSU) a 2 PON sloty pro moduly PIU s osmi 2.5GPON porty (PON Interface Unit). SCU modul U9016B poskytuje 4 porty 1000Base-X (SFP) a 2 porty pro 10GBase-R (SFP+) sám pro uplink. Napájecí zdroje jsou vyměnitelné za provozu bez ohledu na na typ napájení.

UVEDENÁ KONFIGURACE PRODUKTU:

• 1x chassis U9016B
• 1x přepínací modul SCU
• 1x GPON kartu PIU bez SFP
• 2x napájecí zdroj AC
• 1x ventilátor

GENERAL SPECIFICATIONS


• Maximum split ratio 1:128
• Number of PON Interface: 8 Ports Hot-Swappable card, Max 2 Cards
• Network Interfaces: 4-port 1000Base-X (SFP), 2-port 10GBase-R(SFP+)
• Management Interfaces: 10/100Base-TX, RS-232 (Console)
• Dual Power Supply: AC type: 100-240VAC, 50/60Hz or DC type : -48V

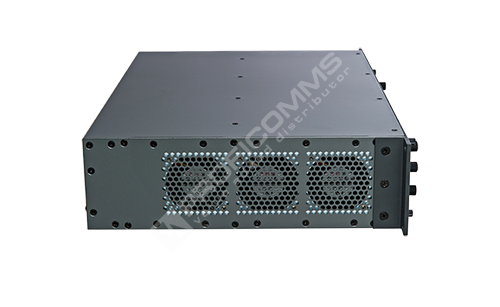

• 1 FAN Interface Module
• Dimension (WxDxH): main body: 482mm x 88.8mm x 295mm
• Operating Temperature: -20~60°C


PON FEATURERS

• Full ITU-T G.984.x GPON OLT functionality.
• 4K port-ID and 1K alloc-ID
• Support ITU-T G.984.4 ONT OMCI
• Multiple T-CONTs per ONU (ONT)
• Wire speed processing
• On-chip embedded reassembly buffer per GPON channel
• 2.5 Gbps downstream rate on each PON channel
• 1.25 Gbps upstream rate on each PON channel
• Supports up to 512 Alloc-IDs per GPON channel
• Internal GPON SERDES and Burst CDR
• 128-bit Advanced Encryption Standard (AES) encryption engine for PON securityand privacy with up to 128 unique keys.
• Flexible optical transceiver interface for multiple vendor support.
• ITU-T G.984 compliant Forward Error Correction (FEC) encoding and decoding for an improved link budget.
• Hardware-based configurable Dynamic Bandwidth Allocation (DBA)
• IEEE 802.1D bridging: 8K MAC Address learning and aging on local interface IEEE 802.1p with four priority queues
• IEEE 802.1Q VLAN mapping


L2 FEATURES

• 802.1Q, Max 4K VLANs, 4K VLAN IDs
• Private VLAN
• 802.3ad Link Aggregation
• Load-balancing based on source and destination MAC/IP
• 802.1d Spanning Tree Protocol
• 802.1w Rapid STP
• Per VLAN STP
• IGMP v1/v2, Snooping
• Max 1K Group Support
• Static Mac Address
• Port Mirroring


L3 FEATURES

• Static Routing
• RIP, OSPF, BGP
• Default Gateway
• VRRP
• ECMP Max 8 paths
• PBR (Policy Based Routing)
• PIM-SM, IGMP v2
• Max 1K Group Support
• DHCP Server/Relay
• Blocking of illegal IP users
• DAI (Dynamic ARP Inspection)


QoS FEATURES

• Layer 2: Source/Destination MAC Address, VLAN ID, COS Field
• Layer 3: Source/Destination IP address, DSCP
• Layer 4: Source/Destination TCP/UDP port
• TCP control flag
• Marking/Remarking: DSCP, COS
• Packet Drop
• Mirroring to Port, Redirect to Port
• Metering, Rate Limiting with 1Mbps unit
• COS – Queue
• DSCP - Queue
• 8 queues per port
• SPQ, DWRR, Hybrid (SPQ+DWRR)
• Egress rate shaping per port/queue with 1Mbps unit


SECURITY FEATURES

• Netbios, NBT filtering
• DHCP filtering
• Packet filtering with ACLs
• Block the illegal Source MAC address
• ALL 0’s, 1’s, System Mac, Default G/W Mac
• Block the illegal Source IP address
• Broadcast, DLF, Multicast packet rate control
• Cut-off of illegal traffic per Source MAC
• Static Mac address
• Mac filtering
• Limitation on Maximum Mac counts
• Port based Self Loop Detect


SYSTEM SECURITY FEATURES

• RADIUS,
• TACACS+
• Telnet, SNMP with ACL
• CPU Packet Filtering with ACL
• Isolate the users who generate overly CPU-intensive Packet
• TCP sync attack protection with sync cookies
• CPU packet rate-limit
• Management packet priority control
• Gratuitous ARP
